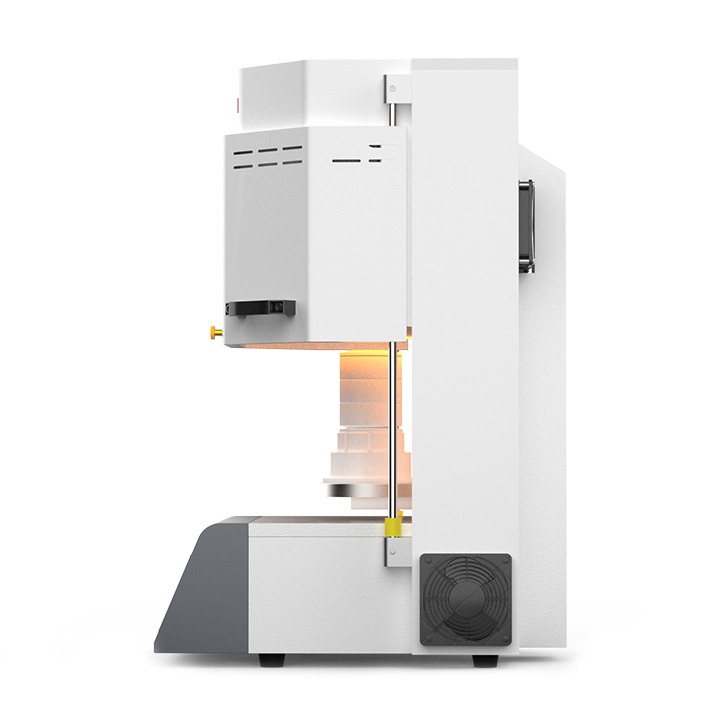

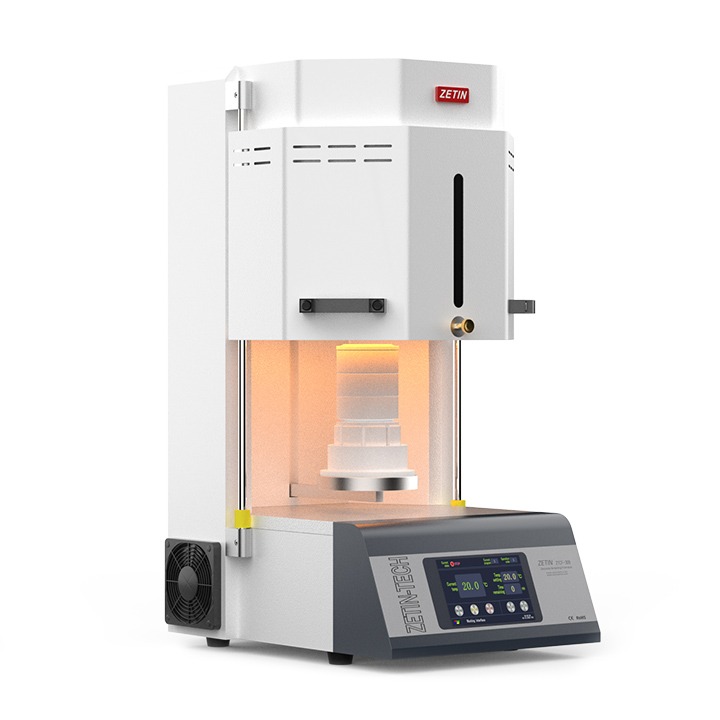

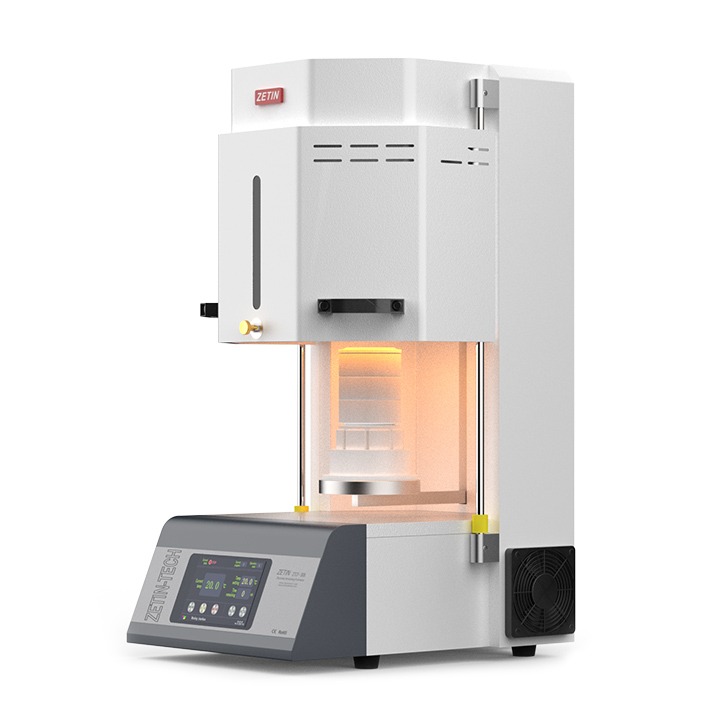

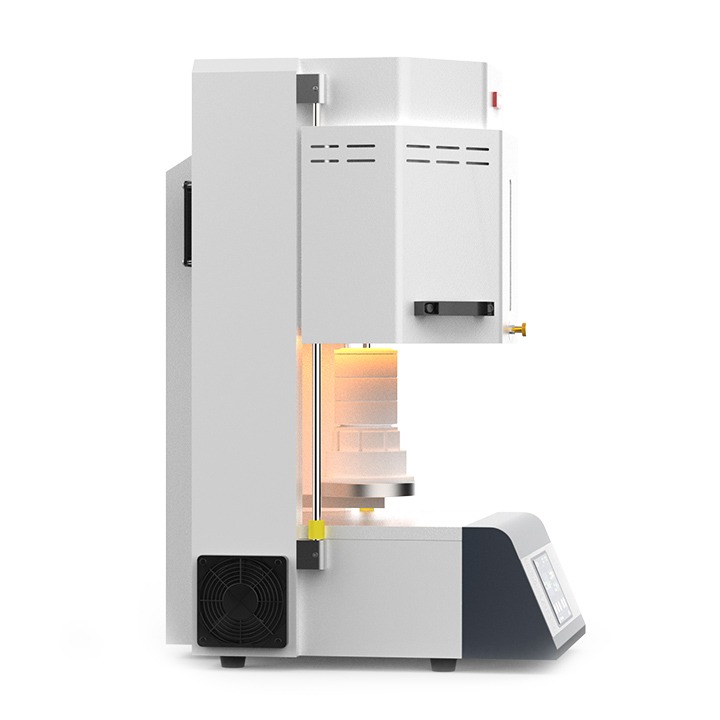

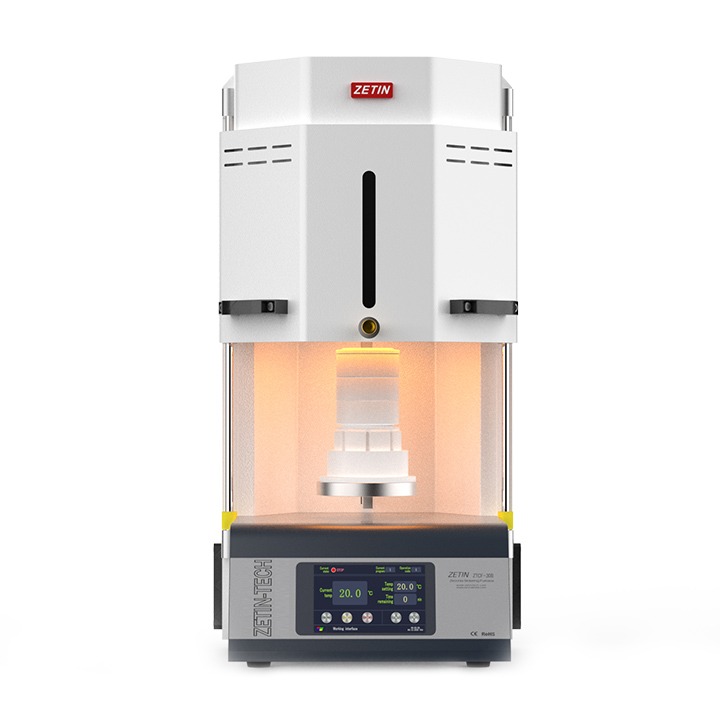

Zetin ZTCF-30B Plus Fast Zirconia Sintering Furnace
The Zetin ZTCF-30B Plus Fast Zirconia Sintering Furnace is an advanced dental sintering solution designed to combine ultra-fast zirconia processing with high-capacity standard sintering in a single intelligent system.
Engineered for modern dental laboratories and digital workflows, the furnace features both…
The Zetin ZTCF-30B Plus Fast Zirconia Sintering Furnace is an advanced dental sintering solution designed to combine ultra-fast zirconia processing with high-capacity standard sintering in a single intelligent system.
Engineered for modern dental laboratories and digital workflows, the furnace features both 65-minute fast sintering and traditional high-capacity sintering modes, allowing technicians to optimize production speed without compromising restoration quality.
With precise PID temperature control, uniform internal heat distribution, and high-purity dental-grade heating elements, the ZTCF-30B Plus delivers reliable, repeatable sintering results for zirconia restorations of all types.
Its large-capacity chamber supports up to 150 units in standard mode, while the intuitive 7-inch touchscreen interface makes program operation and parameter adjustments simple and efficient.
Key Features
● Ultra-fast zirconia sintering in only 65 minutes
● Dual-mode operation with both fast and standard sintering programs
● High-capacity chamber supports up to 150 zirconia units in standard mode
● Advanced PID intelligent temperature control with ±1°C accuracy
● Uniform heat distribution for stable and consistent sintering results
● High-purity dental silicon molybdenum heating elements for contamination-free operation
● Large 7-inch TFT color touchscreen with intuitive parameter control
● Supports up to 100 programmable sintering programs
● Automatic power-off memory recovery function for uninterrupted workflows
● Environmentally friendly thermal insulation materials for enhanced heat stability
● Automatic lifting tray system with excellent sealing performance
● Optimized for high-efficiency dental laboratory production
| Technical Specification | |
|---|---|
| Model | ZTCF-30B Plus |
| Type | Speed / Fast Zirconia Sintering Furnace |
| Fast Sintering Time | 65 minutes (heating, holding, and cooling included) |
| Regular Program Capacity | Up to 150 units with 3 stacked crucible layers |
| Max Temperature | 1730℃ |
| Temperature Accuracy | ±1℃ |
| Touch Screen | 7” TFT Color Display |
| Power | 3KW |
| Voltage | 220V / 50-60Hz |
| Heating Element | High-purity dental heating element |
| Regular Program | No.1 |
| Fast Program | No.2 |
| Cleaning Program | No.40 |
| Program Capacity | 100 programs with power-off memory function |
| Chamber Size | Ø110 × 120 mm |
| Dimensions (L×W×H) | 590 × 470 × 850 mm |
| Net Weight | 60 kg |
